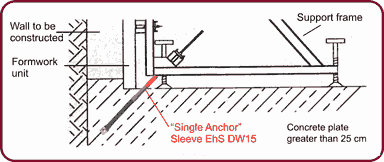

"Single Anchor" Sleeves EhS DW15 / DW20
The reasonable reanchoring system to support frames for single-sided formwork.
  • quick and simple asssembly
  • - before - concreting:
    tie sleeve to the reinforcement
  • or after concreting:
    insert into fresh surface
  • no coupling parts required
  • tie rods reusable
  • minimizes refinishing work
Tensile loads are confirmed by tension tests in angularity 45°at MPA NRW/Germany, an authorized official test institute
Observe the necessary concrete
pressure strength for the load required.
Universal load performance
specifications cannot be made, because
since these depend on the individual situation:
concrete quality, -age, temperature, retarder or accelerator !
for plates with screed topping:
Anchor Sleeve "EhS" DW15/Standard
length appr. 40 cms
for installation in plates greater than 25 cms
Standard type with tube PVC and sealing cap
supplied ready for installation
 perm load P 45° : 85 kN / 17 N/mm2
Anchor Sleeve "EhS" DW15/Standard
length appr. 30 cms
for installation in plates greater than 18 cms
perm. load P 45° : 60 kN / 17 N/mm2
Anchor Sleeve "EhS" DW20/Standard
length appr. 45 cms
for installation in plates greater than 30 cms
perm load P 45° : 140 kN / 30 N/mm2
Installation in angularity 45°
will be simplified
by our Adjusting Gadget 45°
application to Anchor Sleeves "EhS" DW15/DW20
for ready grinded surface :
The "Single Anchor Sleeve" instead of the regular PVC tube
is provided with our PE-45° Recess.
Before using the wing grinder the Anchor Sleeve will be inserted
into the fresh concrete with equal level to the surface.
For refinishing the Recess leaves a suitable space for filling compound.
PE-45° Recess plastic foam component -for concrete cover 30 - 50 mms
with positioning rod and indicator - supplied ready for installation.

The anchor position can be easily treated with the wing grinder and well recognized again.
For refinishing the Recess leaves a suitable space for filling compound.
application with :
Anchor Sleeve "EhS" DW15 length 29 cms.
in concrete plates greater than 25 cms.
Anchor Sleeve "EhS" DW15 lenght 19 cms
in concrete plates greater than 18 cms.
in wall formwork:
fixation in angularity 90° by nailing on
Cone Plug PVC
for concrete cover 12 mms
Fixation Plug PVC or

fixation in angularity 45° by nailing on

PVC 45° Cone
Anchoring out of walls in angularity 45 ° can be assembled by
application of our PVC 45° Cone.
Nail on Cone to the formwork unit, stick up sleeve and tie it to the reinforcement.
After stripping formwork remove the Cone with a pincer and the tie rod can be screwed in.
No more drilling through the formwork !l
for application to
tie rods DW 20 click at EhS 45° "Solo Anchor" System
tie rods DW 26.5 click at EhS 45° "HERCULES" System
