Anchorage EhS 45° "Hercules"
DW 26.5
The most powerful and simultaneously quickest reanchoring
to single-sided wall formwork !
Its new developed slim shaped anchor-head can be easily installed
through close-meshed reinforcement, quicker than all previous systems !
The anchor-head obtains a very high tensile load already at a relatively low concrete pressure property.
perm. tensile load P 45°/
concrete pressure property:
- 275 kN/ 18 N/mm2 -
- 290 kN/ 20 N/mm2 -
- 325 kN/ 25 N/mm2 -
This values were confirmed by tension tests with 45° angularity at

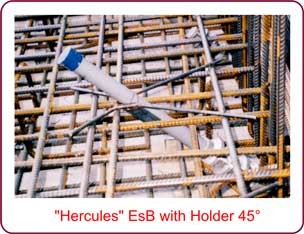

"Hercules" EsB with Holder 45°
authorized test-institute
B e n e f i t s :
  • quick, simple and correct assembly, only 1 person needed
    - fastening at the upper meshes with the Holder 45°
    or with the Adjusting Gadget 45° reusable
  • no coupling parts required
  • short and slim shaped with light weight
  • tie rods DW 26.5 completely reusable
  • minimizes refinishing
  • version for ready grinded surface in range
Anchorage EhS 45° "Hercules" DW26.5/EsB
total length 60 cms
installation in slabs with subsequent screet coating
thickness greater than 40 cms
Type with sealed PVC duct tube and sealing cap
- supplied ready for installation -

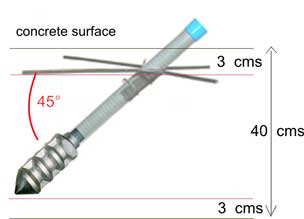

assembly with Holder 45° or Adjusting Gadget 45°
Anchorage EhS 45° "Hercules" DW26.5/GlB
total length 50 cms
installation in slabs with ready grinded surface
thickness greater than 40 cms
Type with PE-45° Recess with indicating pointer
- supplied ready for installation -
The area can be easiliy grinded over and recognized again.
The recess leaves a suitable large space for filling compound.
Installation with Holder 45° exclusively !
Holder 45°
for assembling in correct angularity 45° both "Hercules" types EsB and GlB
absolutely needed for installation of type GlB
Sturdy mounting by broad bearing
Stick PVC duct tube into holder's profile section and tie with both lug wires fixed.
Level can be adjusted due to concrete cover.
Stop Plug for sealing the PVC duct tube,
resp. trapping filling compound.
