EhS 45° "Twin Anchors" System
standard types DW15/DW20
with PVC duct tubes and sealing caps
for installation
in screed coated slabs

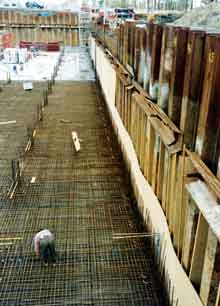

This site successfully used more than 600 "Twin Anchors"
Anchor point before and after concreting
sturdy mounting with broad bearing of assembly bow
Level tolerances got compensated by welding to on addional steel rod
Suspension frames reanchored in 45°-angularity accurately Faultless result for
formwork heights 6,30 ms
Version DW15/DW20
with PE-45° Recess

application for ready grinded surface
PE-45° Recess
elastic plastic component
with fixation rod
and indicator
Anchor point after removing Recess
- ready for screwing in tie rod
Anchoring out of walls - no drilling through the formwork panel
