Anchorage EhS 45° "Hercules"DW 26.5
Type WdS/45°
The most powerful and simultaneously quickest reanchoring
to single-sided formwork out of walls in angularity 45°
This anchorage is consisting of a specially developed slim shaped anchor head with only 75 mms diameter and light weight.
Its assembled elastic PE-45° Recess sealingly will be pressed to the panel by closing the formwork.
perm. tensile load P 45°/
concrete pressure property:
- 275 kN/ 18 N/mm2 -
- 290 kN/ 20 N/mm2 -
observe concrete unit's bearing capacity !
This values were confirmed by tension tests with 45° angularity at
authorized test-institute
"Hercules" WdS with Holder 45°/WdS
B e n e f i t s :
  • quick, simple and correct assembly, only 1 person needed
    - fastening to the reinforcement with the Holder 45°/WdS
    • no coupling parts required
    • short and slim shaped with light weight
    • tie rods DW 26.5 completely reusable
    • high tensile load at low concrete pressure
    • minimizes refinishing
    • no stressing to formwork's panel by nailing or boreing
Anchorage EhS 45° "Hercules" DW26.5/WdS
total length 28 cms
for installation in wall formwork greater than 25 cms
Type with duct tube PVC and PE-45° Recess for concrete cover 30 mms
- supplied ready for application -

Types for other angularity or concrete cover available !

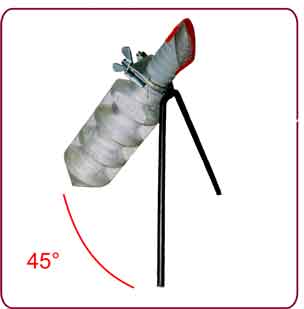

Holder 45°/WdS
for installing the anchorage in 45° angularity into wall formwork
- concrete cover 30 mms - no boreing through the panel !
Sturdy mounting by broad bearing
Stick PVC duct tube into holder's clamp and tie wing nut.

Types for other angularity available !
Stop Plug for sealing PVC duct tube,
resp. trapping filling compound.
